HAUG.Taurus Series Oil-Free Piston Compressors

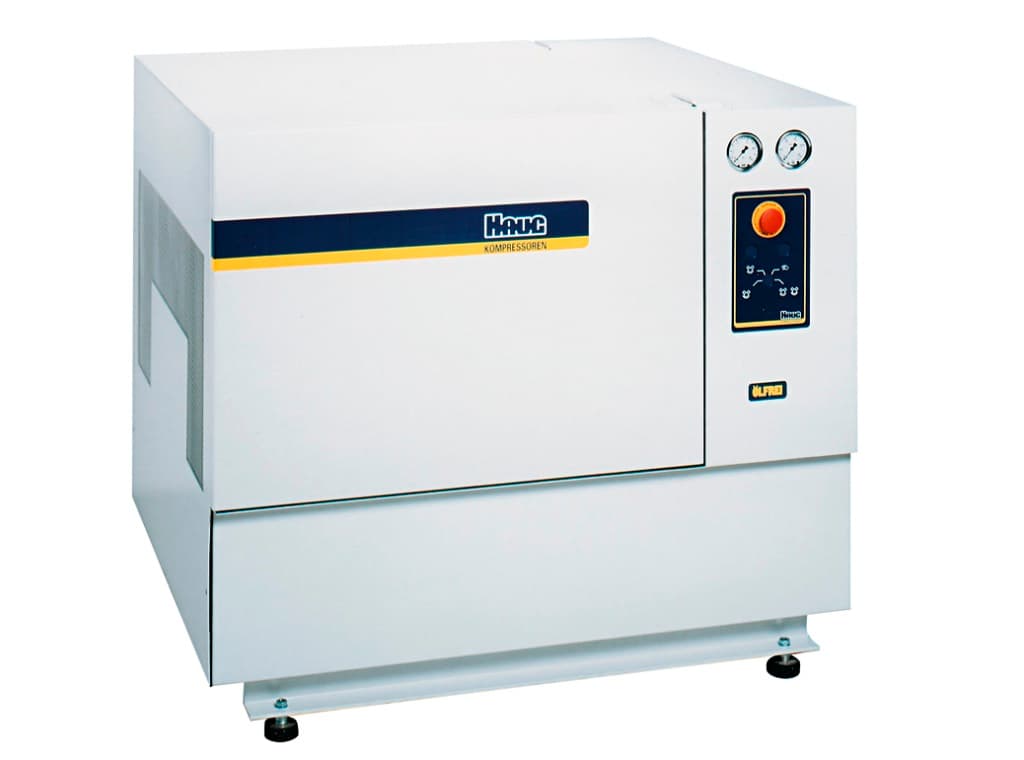

Name: Sauer HAUG.Taurus Series Oil-Free Piston Compressors
Brand: Sauer

Sauer

HAUG.Taurus is an oil-free, dry-running reciprocating piston compressor series built by HAUG Sauer Kompressoren AG (a Sauer Compressors Group company). Per haug.ch: motor power from 4 to 11 kW, final discharge pressure max. approx. 60 barg with 3-stage versions (≈16 barg with 2-stage), maximum flow rate at atmospheric intake approx. 48 m³/h. Modular 2- or 3-cylinder design; ATEX zone 1/2 versions available; ISO 80079-34:2020 conform.

Models:

HAUG.Taurus 2-cylinder, 1-stageHAUG.Taurus 2-cylinder, 2-stage (up to ~16 bar)HAUG.Taurus 3-cylinder, 2-stageHAUG.Taurus 3-cylinder, 3-stage (up to ~60 bar)HAUG.Taurus ATEX zone 1 or zone 2 version

PRICE

On request

Key features

Completely oil-free and dry-running — no oil contamination of the compressed air
Modular design — 2 or 3 cylinders, 1-, 2- or 3-stage
Final pressure up to approx. 60 barg in 3-stage version
Available as ATEX zone 1 or zone 2 explosion-proof version
Air-cooled — high cooling performance even in difficult conditions
Suitable for continuous, intermittent and emergency operation with long downtimes
Global service network of Sauer Compressors Group

CEATEX 2014/34/EU (optional)ISO 80079-34:2020 conformance

REQUEST PRICE CONSULTATION

Fast delivery

Warranty

Service

Need a consultation?

Our experts will help you choose the right solution and provide professional advice.

+371 27003071 info@aircenter.lv

Technical specifications

Flow M3 Hmax. approx. 48 ("Maximum flow rate at atmospheric intake pressure approx. 48 m3/h")

Noise DbAnot specified

Drive TypeDirect drive on split crankshaft (modular)

LubricationOil-free, dry-running (no cylinder lubrication, no oil bath)

Vacuum Mbarnot applicable

Pressure Barup to ~16 barg (2-stage) / up to ~60 barg (3-stage)

Power Range Kw4–11 (verbatim from haug.ch: "Motor power from 4 to 11 kW")

Applications

Ķīmiskā un farmācijas rūpniecībaPārtikas un dzērienu nozareElektronika un pusvadītāju ražošanaSprādzienbīstama vide (ATEX zona 1/2)
